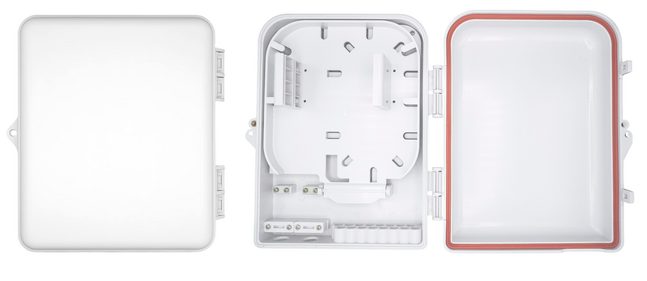

FIBERCORE NAP OPTICAL TERMINATION BOX –
TYPE B
The FiberCore NAP Optical Termination Box – Type B is a durable outdoor optical fiber termination enclosure designed for FTTx access networks. It combines fiber splicing, termination, distribution, and PLC splitter integration in a compact, weather-resistant housing that delivers dependable performance in demanding outdoor environments.
Manufactured from premium UV-resistant ABS plastic, the enclosure provides secure protection for optical fibers while offering easy installation and maintenance. Designed to support up to 16 fiber terminations, it accommodates flexible splitter configurations and includes dedicated cable entry and drop cable ports for efficient fiber organization.
The Type B Optical Termination Box is ideal for FTTH, FTTB, CATV, telecommunications, and data communication networks where reliable fiber access and distribution are essential.
| Specification | Details |
| Model | FC-48-OTBNAP-B |
| Dimensions | 225 × 302 × 92 mm |
| Material | High-strength UV-resistant ABS Plastic |
| Fiber Capacity | Up to 16 Fibers |
| Splitter Support | 2 × 1:8 PLC Splitters or 1 × 1:16 PLC Splitter |
| Cable Entry Ports | 2 × M20 Cable Glands |
| Drop Cable Ports | 16 × 2×3 mm FTTH Ports |
| Installation | Outdoor Wall Mount / Pole Mount |
| Protection | Weather-resistant ABS Enclosure |
DOME / VERTICAL
SPLICE CLOSURE
All Models: FC-46-DSC-48 | FC-46-DSC-120 | FC-46-DSC-144
The FiberCore Dome / Vertical Splice Closures are designed for outdoor fiber optic cable splicing applications requiring reliable protection, durability, and environmental resistance. Featuring a vertical dome design, these closures provide efficient space utilization while protecting fiber splicing points from water, dust, and harsh outdoor conditions.
Built with high-strength engineering plastic, the enclosure provides UV resistance, corrosion protection, and long-term durability. It is suitable for aerial, pole-mounted, wall-mounted, and underground installations, making it ideal for backbone, distribution, and access fiber networks.
Available in 48-core, 120-core, and 144-core configurations, the series provides flexible capacity options for different network deployment requirements.
Specification | 48 Port | 120 Port | 144 Port |
Model | FC-46-DSC-48 | FC-46-DSC-120 | FC-46-DSC-144 |
Dimension | 140 × 300 mm | 170 × 441 mm | 201 × 506 mm |
Weight | 1.9 kg | 2.8 kg | 3.1 kg |
Cable Diameter | Ø7–Ø18 mm | Ø7–Ø18 mm | Ø7–Ø18 mm |
Cable Entry Ports | 1 oval & 3 round ports | 3 in & 3 out | 1 oval & 3 round ports |
Splice Tray Quantity | 4 trays | 5 trays | 6 trays |
Maximum Capacity | 48 fibers | 120 fibers | 144 fibers |
Waterproof Grade | IP68 | IP68 | IP68 |
Sealing Structure | Heat shrinkable sealing | Sticky cincture | Sticky cincture |
