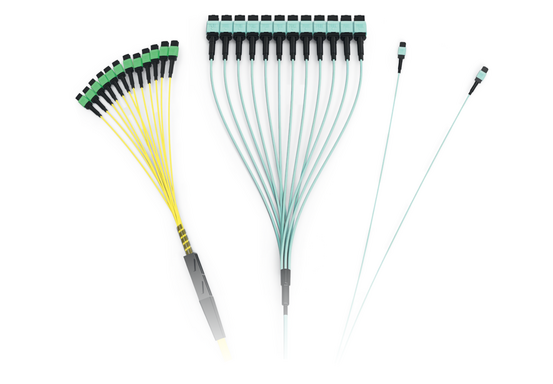

STANDARD MTP® TRUNKS
Standard MTP® Trunks are high-performance fiber optic trunk solutions designed for high-density data center and enterprise network applications. Featuring MTP® connectors, customizable fiber counts, multiple polarity options, and flexible configurations, they provide efficient installation, reduced cable congestion, and reliable high-speed fiber connectivity for modern structured cabling systems.
SPECIFICATION | DETAILS |
Product Type | Standard MTP® Trunks |
Fiber Category | Single-mode OS2 / Multimode OM1 62.5μm / OM3 / OM4 / OM5 50μm |
Fiber Count | 4F – 288F |
Connector Type | LC Simplex / LC Duplex / LC APC Duplex / LC APC Simplex / LC Reverse Polarity Uniboot / LC Push-Pull Uniboot / MTP® 12F / MTP® 8F / MTP® 24F |
Connector Color | Aqua / Yellow / Magenta |
Polarity Type | Type A / Type B / Type C |
CONNECTOR TYPE | MAX IL | RETURN LOSS (RL) |
Single-mode LC | 0.20 dB | ≥55 dB |
Single-mode MTP® Standard | 0.20 dB | ≥65 dB |
Single-mode MTP® Low Loss | 0.20 dB | ≥55 dB |
Multimode LC | 0.20 dB | ≥65 dB |
Multimode MTP® Low Loss | 0.20 dB | ≥55 dB |
FiberCore Plus
