INLINE / HORIZONTAL

SPLICE CLOSURE

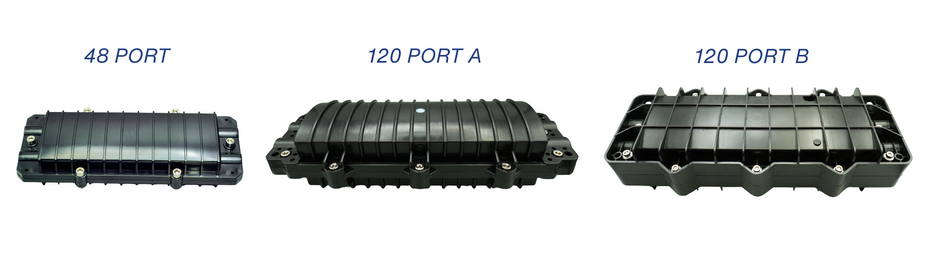

All Models: FC-47-ISC-48 | FC-47-ISC-120A | FC-47-ISC-120B

The FiberCore Inline / Horizontal Splice Closures are designed for outdoor fiber optic cable splicing applications requiring reliable protection and flexible installation options. The horizontal design allows efficient cable routing and is suitable for aerial, duct, and wall-mounted fiber deployments.


Constructed from high-strength ABS plastic, these closures provide lightweight durability while protecting fiber splicing points from rain, dust, and environmental conditions. The closure features reliable sealing systems with re-entry capability, allowing easier maintenance, expansion, and cable repair.


Available in 48-core and 120-core configurations, these closures are ideal for backbone, trunk line, FTTH, and access network applications.


  • Horizontal inline splice closure design
  • Lightweight and durable ABS plastic housing
  • Outdoor weather-resistant construction
  • Protects fiber splicing and cable connections
  • Supports aerial and wall-mount installations
  • Compact and economical design
  • Reliable sealing with re-entry support
  • Resistant to rain, dust, and environmental conditions
  • Suitable for cable repair and branching applications



  • Backbone and trunk line fiber splicing
  • FTTH and access networks
  • Aerial fiber installation
  • Wall-mounted fiber installations
  • Underground/duct fiber applications
  • Fiber cable repair points
  • Fiber cable branching connections
Specification
48 Port
120 Port A
120 Port B
Model
FC-47-ISC-48
FC-47-ISC-120A
FC-47-ISC-120B
Dimension
320 × 136 × 66 mm
424 × 176 × 106 mm
424 × 174 × 104 mm
Weight
0.7 kg
2.2 kg
2.2 kg
Cable Diameter
Ø7–Ø12.6 mm
Ø7–Ø18 mm
Ø7–Ø18 mm
Cable Entry Ports
2 in / 2 out
2 in / 2 out
2 in / 2 out
Splice Tray Quantity
2trays
5 trays
5 trays
Maximum Fiber Capacity
48 fibers
120 fibers
120 fibers
Sealing Structure
Sealing rubber gasket
Mechanical sealing
Silicone sealing gasket
