Single Mode Indoor Distribution Cable GJPFJH

GJPFJH Indoor Tight Buffer Fiber Distribution Cable SM G.652D Yellow

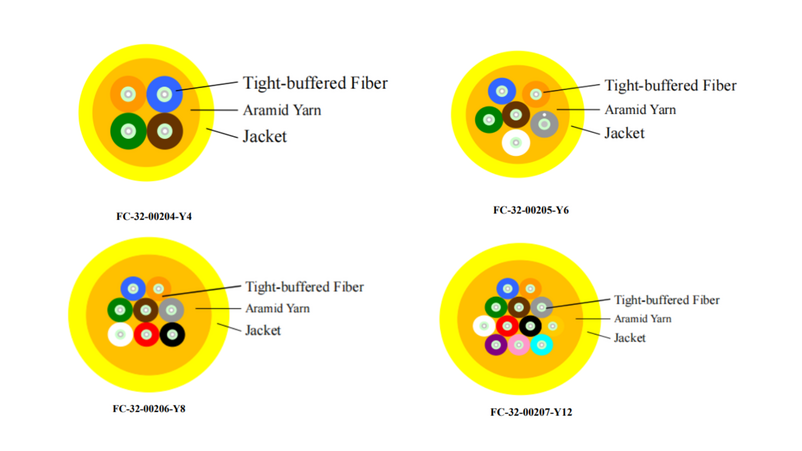

The GJPFJH Indoor Tight Buffer Fiber Distribution Cable SM G.652D Yellow is a high-performance single-mode fiber optic cable designed for indoor structured cabling and long-distance optical transmission. Constructed with G.652D tight-buffered fibers, Kevlar (Aramid Yarn) strength members, and a flame-retardant LSZH jacket, it delivers low attenuation, reliable signal integrity, and excellent mechanical durability. Available in 4, 6, 8, and 12-core configurations, it is ideal for telecommunications, enterprise networks, and data center applications.

Features

G.652D single-mode fiber provides low attenuation and high transmission performance.
Tight-buffered fiber construction simplifies installation and field termination.
Kevlar (Aramid Yarn) strength members enhance tensile strength and cable durability.
LSZH jacket improves fire safety and minimizes smoke and halogen emissions.
Lightweight and flexible for indoor routing.
Easy to strip and terminate.
Stable optical performance for long-distance communication.
Compatible with standard fiber optic connectors and termination equipment.

APPLICATIONS

Indoor backbone and horizontal cabling
Data centers and enterprise networks
Telecommunications rooms and ODF connections
FTTH, FTTB, and FTTO indoor deployments
Long-distance LAN and WAN fiber links
Switch, router, server, and storage interconnections
High-density structured cabling installations

Technical Specifications

ITEM	SPECIFICATION
Fiber Type	Single Mode G.652D
Mode Field Diameter	8.8 ± 0.4 μm @1310nm; 9.8 ± 0.5 μm @1550nm
Cable Cutoff Wavelength	≤1260 nm
Attenuation	≤0.4 dB/km @1310nm; ≤0.3 dB/km @1550nm
