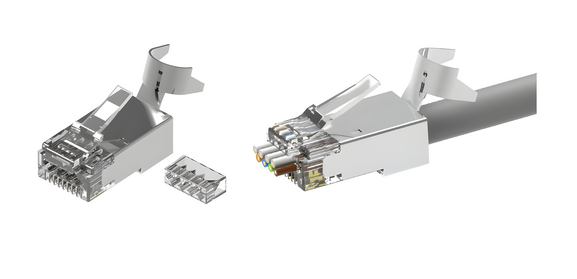

CAT6A F/UTP Easy Pass Through Modular Plug



CAT6A F/UTP Easy Pass Through Modular Plug is engineered for shielded Cat6A cable installations, providing fast pass-through termination and dependable signal integrity. Constructed with a durable shielded copper nickel alloy shell and gold-plated contacts, it delivers reliable performance for high-speed Ethernet applications while minimizing installation time.


  • Easy Pass Through Design for fast field termination and assembly
  • 1.2 mm wire hole fits insulation diameter of 1.05–1.15 mm
  • Three-prong contact blades compatible with stranded and solid wire (23–26 AWG)
  • 50 μin gold-plated contacts with X-ray test report
  • RJ45 connector compliant with FCC standards



  • Dielectric Voltage Withstand: 1000 VAC/DC for 60 seconds (Pass)
  • Insulation Resistance: 500 MΩ
  • Contact Resistance: 20 mΩ maximum
  • Operating & Storage Temperature: -40°C to +70°C
  • Durability: 1,200 mating cycles (750 standard)
  • Tensile Strength: ≥20 lb (9.1 kg)


  • Polycarbonate 94V2 housing
  • 50 μin gold plating
  • Shielded copper nickel alloy shell
