CAT6A 23AWG UTP INDOOR CABLE
Solid PVC Cable
TIA/EIA 568.2-D • EN50173 • ISO/IEC 11801
CAT6A 23AWG UTP Indoor Cable is a high-performance structured cabling solution designed for reliable data, video, and audio transmission applications. Built with 23AWG solid bare copper conductors, HDPE insulation, and an LSZH jacket, it supports high-bandwidth networks up to 500MHz while providing enhanced durability, safety, and compliance for modern indoor network infrastructure.

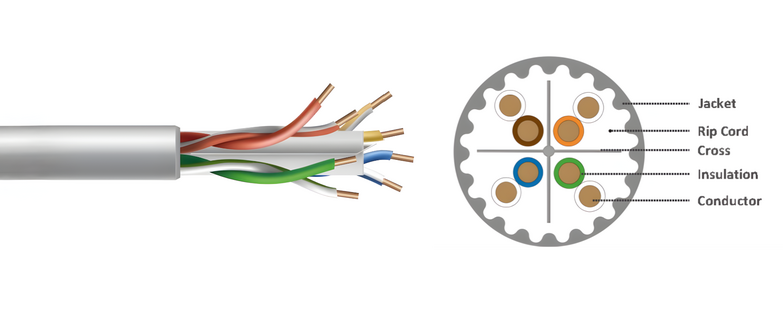

COMPONENT | SPECIFICATION |
Conductor | 23AWG Solid Bare Copper, 0.57±0.008mm |
Insulation | HDPE, OD 1.03±0.1mm, Min Thickness 0.23mm (REF) |
Filler | Rip Cord 3*250D |
Central Element | 5.3mm (REF) + CROSS |
Jacket | LSZH, OD 7.0±0.35mm, Average Thickness 0.5±0.05mm, Grey |
