CAT5E 24AWG U/UTP CABLE

Solid CM Cable

INTERNATIONAL: IEC 61156-5 (Edit 2.1)

CAT5E 24AWG U/UTP Cable is a high-performance solid copper network cable designed for reliable data transmission and structured cabling applications. Featuring a durable PVC jacket, polyolefin insulation, and high-quality safety properties, it supports transmission frequencies up to 350MHz while ensuring stable connectivity, easy installation, and long-term performance for network infrastructure solutions.


  • High performance of transmission.
  • High quality of safety property.
  • Sweep frequency up to 350 MHz.
  • Reelex ♊︎ carton and easy to pull out.
  • Carton with one layer corrugated design providing sufficient strength and saving packaging space.

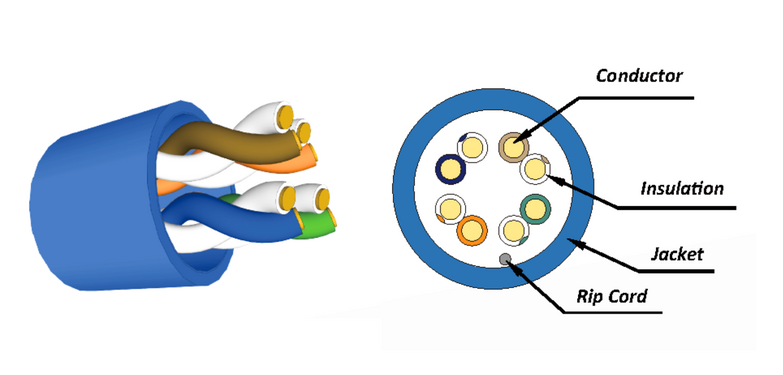

    1. CONDUCTOR Size :
    1-1. Type : Solid bare copper

    2. INSULATION :
    2-1. Type : Polyolefin (PO)
    2-2. Diameter : 0.87±0.02mm ;
             0.86±0.02mm

    3. JACKET TYPE : Polyvinyl chloride (PVC)
    3-1. Overall Diameter : 4.8±0.02mm
    3-2. Thickness : 0.45±0.05mm


  • Cold bend test : -20°C for 4hr
  • Dielectric strength : 1.5 KV AC for 2S
  • Min bending radius : ≥ 4 times of overall diameter
  • Max pulling tension : ≤ 110 N
  • Installation temperature : 0°C to 60°C
  • Operating temperature : -20°C to 75°C
