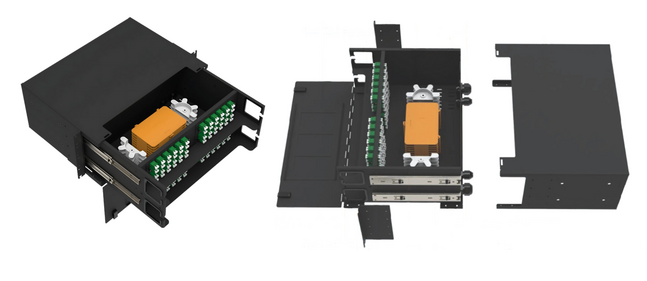

4U SPLICING PATCH PANEL

4U Rack Mount Sliding Type

Optical Distribution Frame (ODF)



The FiberCore 4U Splicing Patch Panel is a high-density fiber termination and splicing solution designed for standard 19-inch cabinet installations. It supports organized fiber splicing, adapter mounting, and cable management with a capacity of up to 192 cores using LC adapters.


  • Standard 19“
  • 4U up to 144F using SC adapter
  • Mounting Bracket
  • Three section stainless steel rails, independent, & sliding bottom box
  • Waterproof connector cable entry
  • 175-type adaptor plate
  • Different plates and adapters can be loaded (LC/SC/FC/ST)
  • High quality sheet metal technology and mist spray




  • Data Centers
  • Computer Centers
  • Machine Rooms
  • Database Facilities


  • Size: 482.6mm × 333mm × 174.4mm
  • Material: High-quality cold rolled plate
  • Surface:
    • Black (RAL9005)
    • Beige (RAL1001)
  • Maximum Capacity:
    • SC/ST/FC: Up to 108 cores
    • LC: Up to 216 cores
