9GJXFH-FTTH Drop Cable for Indoor 1F / 2F SM G.657A2 LSZH Black 2 × 0.5mm FRP
The GJXFH-FTTH Drop Cable for Indoor 1F/2F SM G.657A2 LSZH Black 2 × 0.5mm FRP is designed to provide reliable single-mode fiber connectivity for indoor Fiber-to-the-Home (FTTH) and FTTx applications. Constructed with G.657.A2 bend-insensitive fiber, a flame-retardant LSZH (Low Smoke Zero Halogen) jacket, and dual 0.5mm FRP strength members, it delivers excellent mechanical protection, low bending loss, and stable optical performance. Its compact flat design allows for quick installation, easy termination, and dependable performance in residential, commercial, and enterprise fiber networks.
SPECIFICATION | DETAILS |
Fiber Type | Single Mode G.657.A2 |
Fiber Count | 1F / 2F |

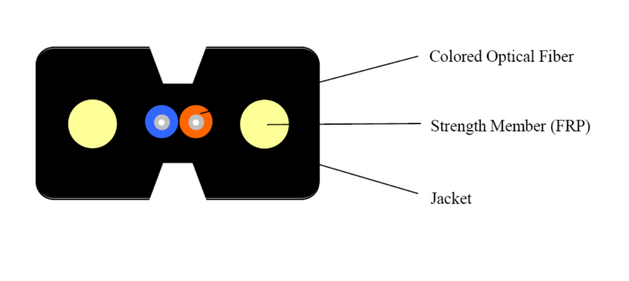

Cable Structure | Flat Indoor Drop Cable |
Jacket Material | LSZH (Low Smoke Zero Halogen) |
Jacket Color | Black |
Strength Member | 2 × 0.5 mm FRP |
Operating Temperature | -20°C to +70°C |
Dynamic Minimum Bend Radius | 20D |
Static Minimum Bend Radius | 10D |
ITEM | SPECIFICATION |
Long-Term Tensile Strength | 100 N |
Short-Term Tensile Strength | 200 N |
Long-Term Crush Resistance | 1000 N/10 cm |
Short-Term Crush Resistance | 2200 N/10 cm |
Dynamic Bend Radius | 20D |
Static Bend Radius | 10D |
