Suitable for FTTH, MAN, Access Network Application.
Designed for quick self-support aerial installation without the need of messenger wires and pothooks.

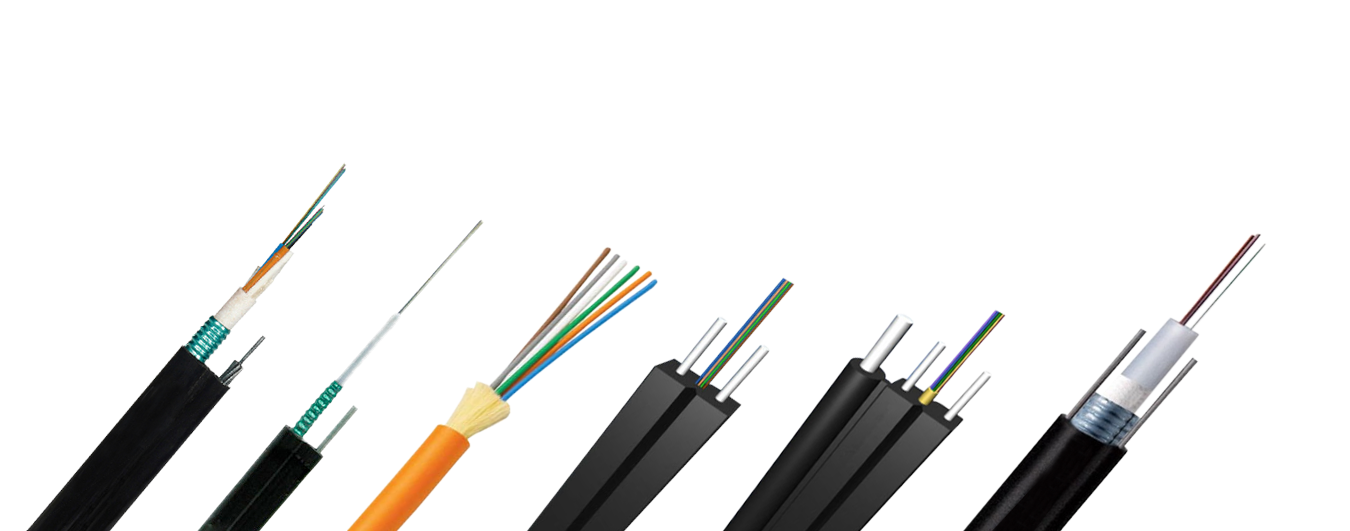

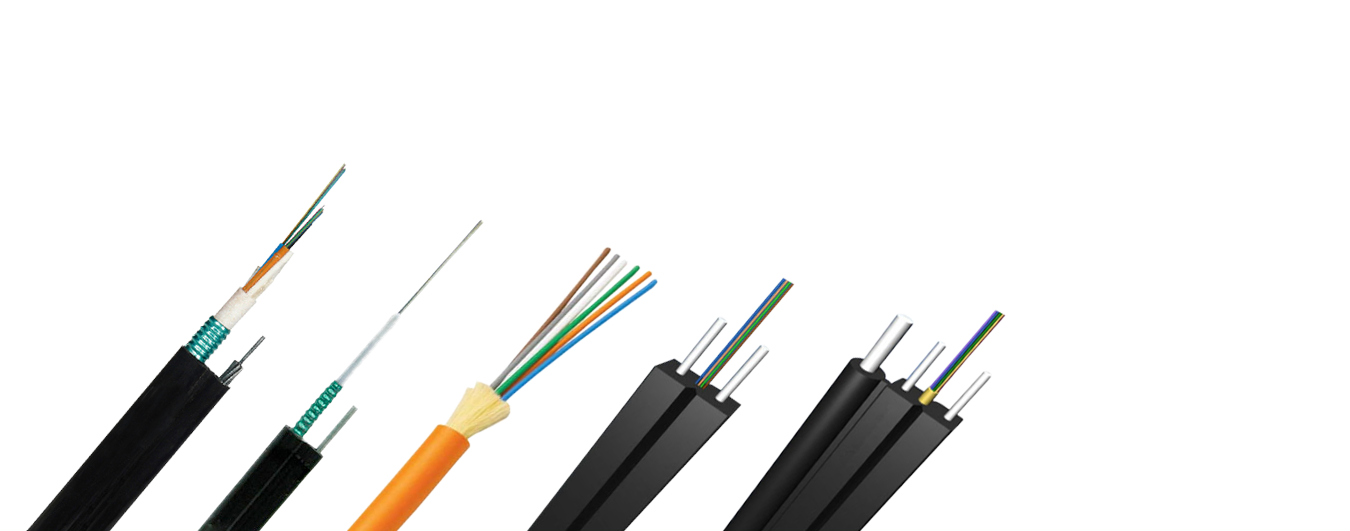

BOW-TIE shape self-supporting optical cable is used for cabling in FTTH network, both indoor and outdoor dropping in access network.
Distribution Cable, Non-Metallic strengthen, Low Smoke Zero Halogen flame retardant sheath, Flame retardant performance in general, safe and environmental-friendly protection.

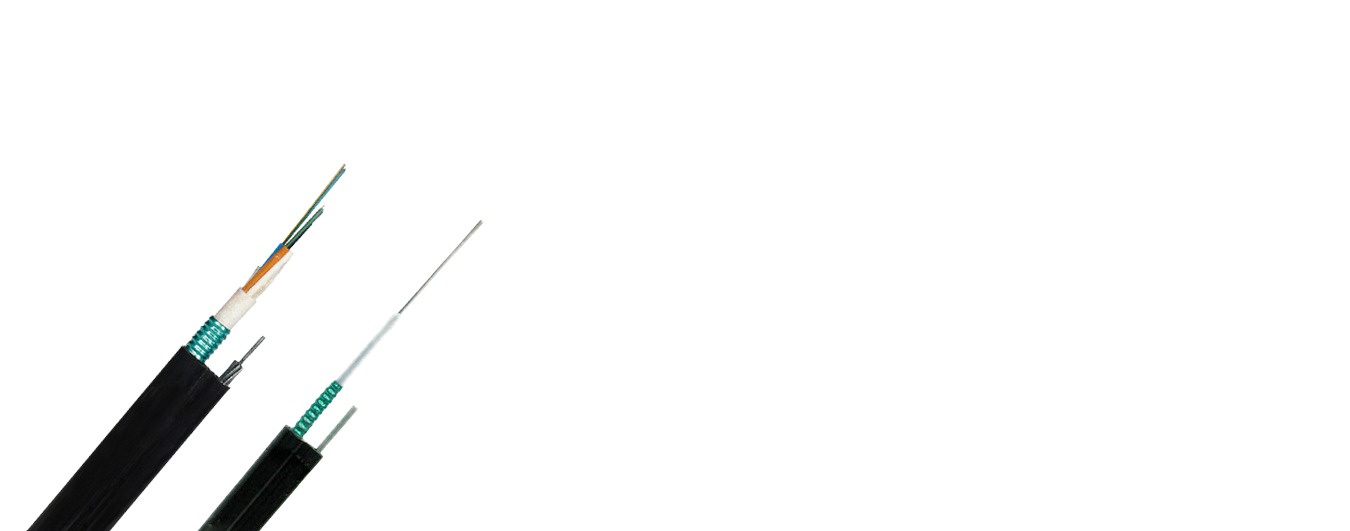

a PBT loose tube is put in the center of the cable, the tube is overlap-wrapped with a layer of double corrugated plastics-coated steel tape or aluminum tape, and two steel wires are placed among PE sheath parallel with each other as strength member.
Fiber Optic Patchcord SM
Singlemode 9/125
1m/2m /3m /5m/10m/15m length
SC LC ST FC Connectors available combination
Fiber Optic Patchcord OM3
Multimode 50/125
1m/2m /3m /5m/10m/15m length
SC LC ST FC Connectors available combination
Fiber Optic Patchcord OM4
Multimode 50/125
1m/2m /3m /5m/10m/15m length
SC LC ST FC Connectors available combination
1RU ODF FIBER RACKMOUNT
Dimension(mm): 426x221.5x42
Material: cold roll steel
Adapter port: 24pcs SC simplex
Max. capacity: 24 fibers
Max. qty of splice tray: 2pcs
Max. capacity of splice tray: 12 fibers Color: black
Application: 19inch rack mounted
2RU ODF FIBER RACKMOUNT
Dimension(mm): 426x220.1x87.3
Material: cold roll steel
Adapter port: 48pcs SC simplex
Max. capacity: 48 fibers
Max. qty of splice tray: 4pcs
Max. capacity of splice tray: 12 fibers Color: black
Application: 19inch rack mounted
8 SC ODF Wallmount Indoor
Dimension(mm): 200x168.5x34.9
Material: cold roll steel
Adapter port: 8pcs SC simplex
Max. capacity: 12 fibers
Color: RAL7035
Application: indoor wall mounted
12 SC ODF Wallmount Indoor
Dimension(mm): 233.8x170x40
Material: cold roll steel
Max. capacity: 12 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray: 12 fibers Color: RAL7035
Application: indoor wall mounted
12 SC ODF Wallmount Outdoor
Dimension(mm): 220x250x70.5
Material: cold roll steel
Adapter port: 12pcs SC simplex
Max. capacity: 12 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray: 12 fibers Color: RAL7035
Application: outdoor wall mounted
2 SC Fiber Plate
Dimension(mm):
164x102.8x20
Material: ABS plastic
Adapter port: 1pc SC duplex
Max. capacity: 12 fibers
Max. qty of splice module: 2pcs
Max. capacity of splice tray: 6 fibersColor: white
Application: indoor wall mounted
4 SC ODF Indoor
Dimension(mm): 150x110x34
Material: ABS plastic
Adapter port: 4pcs SC simplex
Max. capacity: 4 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray: 4 fibers
Color: white Application: indoor wall mounted
4 SC ODF Outdoor
Dimension(mm): 211.6x141.6x39.8
Material: ABS plastic
Adapter port: 4pcs SC simplex
Max. capacity: 4 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray: 4 fibers
Color: white
Application: Outdoor wall mounted
12-24 ODF Outdoor
Dimension(mm): 250.4x322.5x91.9
Material: ABS plastic
Adapter port: 12pcs SC simplex
Max. capacity: 36 fibers
Max. qty of splice tray: 3pcs
Max. capacity of splice tray: 12 fibers
Color: white
Application: outdoor wall mounted, pole mounted
24-48 ODF Outdoor
Dimension(mm): 265.1x299.2x95.4
Material: ABS plasitc
Adapter port: 24pcs SC simplex
Max. capacity: 60 fibers
Max. qty of splice tray: 5pcs
Max. capacity of splice tray: 12 fibers Color: whiteApplication: indoor wall mounted
24 48 72 96 120 FO 3in 3out FIBER OPTIC SPLICE CLOSURE
Dimension(mm): Φ170.5 x 441
Material: ABS plastic
Max. capacity: 120 fibers
Max. qty of splice tray: 5pcs
Max. capacity of splice tray: 24 fibers
Cable port: 3 in 3 out
Mechanical sealing structure
Application: outdoor aerial hanged, wall mounted, pole mounted
120 FO 2 in 2 out DOME TYPE FIBER OPTIC SPLICE CLOSURE
Dimension(mm): Φ168 x 424.5
Material: PP plastic
Max. capacity: 120 fibers
Max. qty of splice tray: 5pcs
Max. capacity of splice tray: 24 fibers Cable port: 2 in 2 out Mechanical sealing structure
Application: outdoor aerial hanged, wall mounted, pole mounted
24 SC ODF Wallmount Outdoor
Dimension(mm): 349.6x330x79.8
Material: cold roll steel
Adapter port: 24pcs SC simplex
Max. capacity: 24 fibers
Max. qty of splice tray: 2pc
Max. capacity of splice tray: 12 fibers Color: RAL7035
Application: indoor wall mounted
